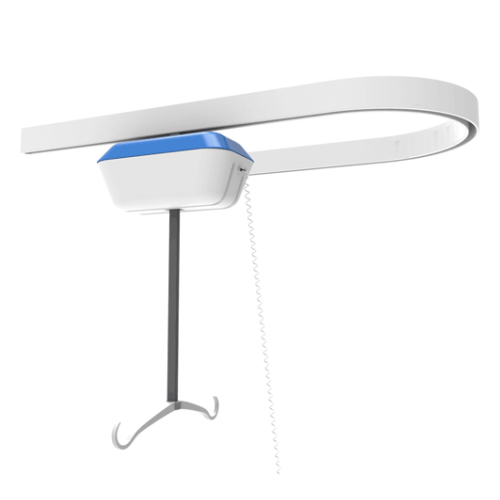

Hanging shift of the electric machine (rail) installed on the roof or special rail operator to make use of the roof with hanging clothes the overhead of type host forward or backward, up or down, through the rotary table, orbit and well glyph rail transformation, to the elderly, the disabled from bed or a room to the toilet, bath room, dining-room, sitting room to a wheelchair or seat of barrier-free shift, also can full the user's own shift operation.
1. Model: RH-TG
2. ★ Body folding size: 600*240*300mm
3. Maximum load: 250Kg
4. Lifting stroke: ≥2000mm
5. Battery capacity: 2.2Ah
6. Working voltage: DC 24V
7. ★ Shell material: ABS engineering plastic
8. Track material: aluminum alloy
9. Loading per meter: 200kg
10. Installation and fixing mode: screw suspension type
11. Running speed of the nose: 150mm/s
12. Head up and down speed: 26.7mm/s up and down 26.7mm/s (no load), 23m/s down 26.3mm/s (load 100kg)
13. Lifting weight: ≤150kg
14. Material of hanging garment: polyester
15. Weight of nose: 20.6kg
16. Orbital speed: 9s
17. Transferring speed: 6s (under load of 70kg)
18. Track section size: 90×55mm
19. Track length: 4600mm
